PQY Front Traction Control Tie Bar Set – Compatible with 92–00 Honda Civic & 94–01 Acura Integra

Description

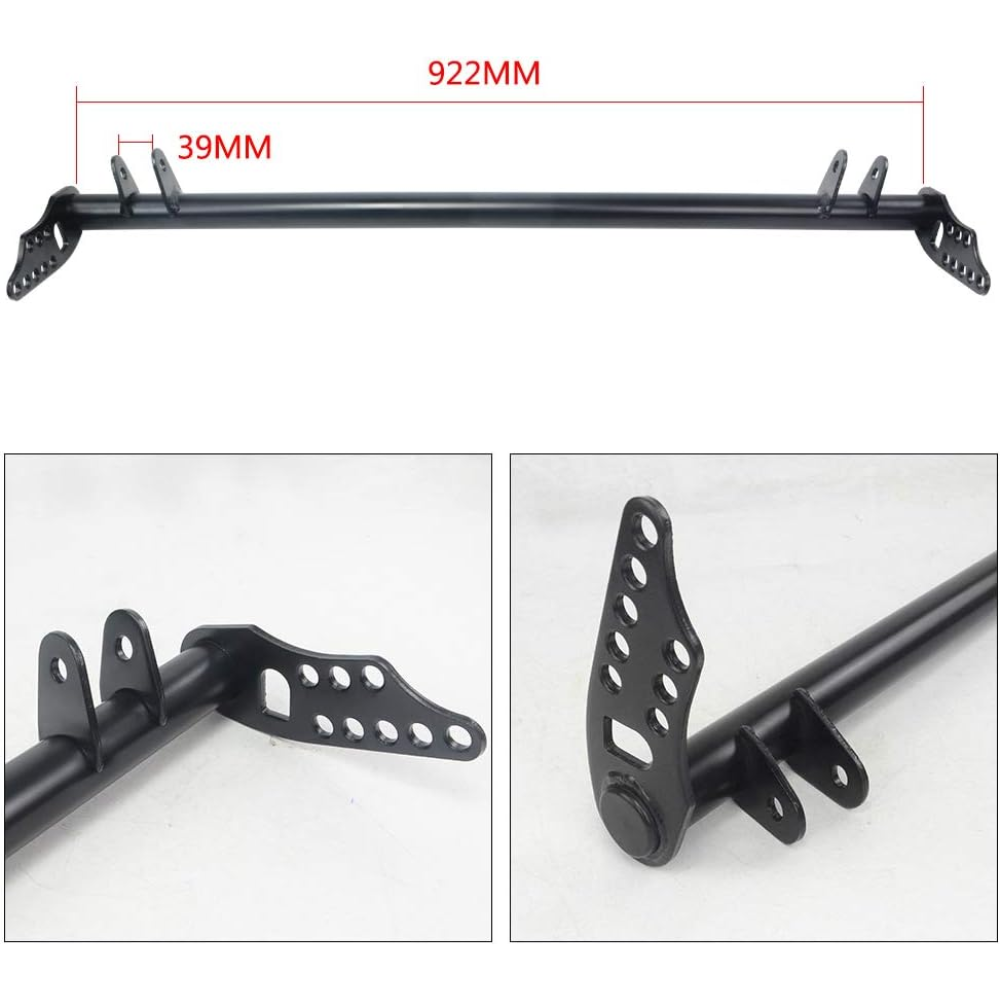

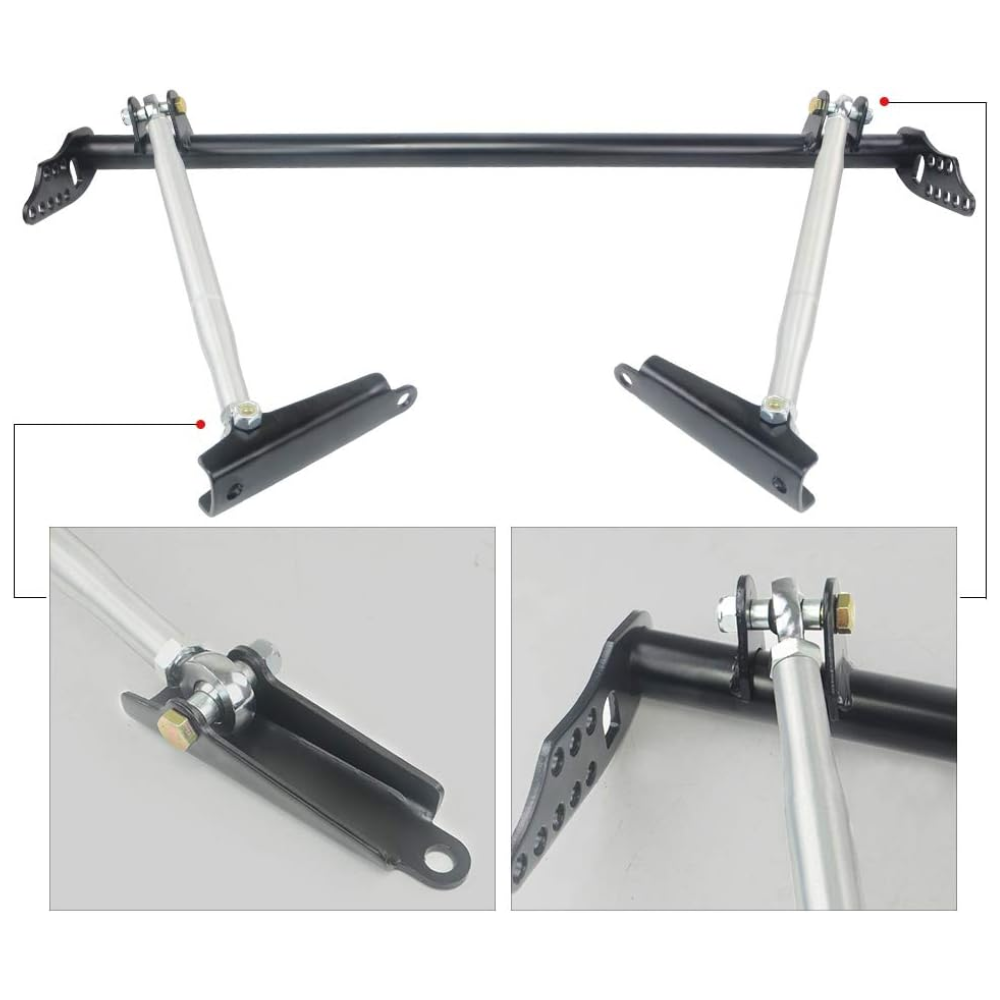

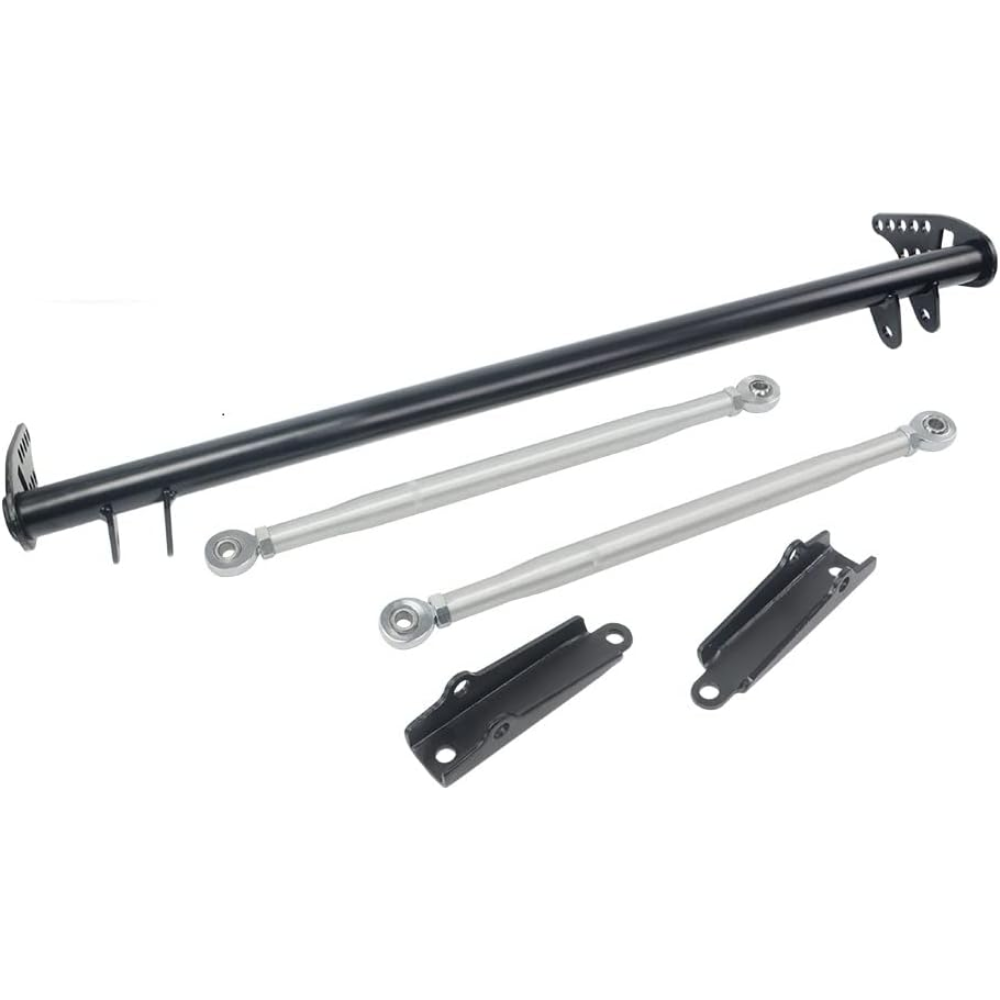

This front traction control tie bar set is a high-performance suspension upgrade designed for Honda Civic (92–00) and Acura Integra (94–01) models. The kit includes a heavy-duty black main cross-bar, two adjustable silver tie rods with spherical heim joints, and reinforced mounting brackets. By connecting the lower control arms to the front of the chassis, this system significantly reduces wheel hop and improves front-end stability, providing more consistent traction during hard acceleration and cornering.

Instructions:

1. Safely lift the vehicle and secure it on jack stands before removing the front wheels and the factory front cross-member or tow hooks.
2. Mount the main black tie bar to the front of the vehicle chassis using the provided high-strength brackets.
3. Connect one end of the adjustable silver tie rods to the mounting tabs on the main bar and the other end to the lower control arms.
4. Rotate the center section of the tie rods to adjust the length, ensuring the front suspension is properly aligned and pre-loaded.

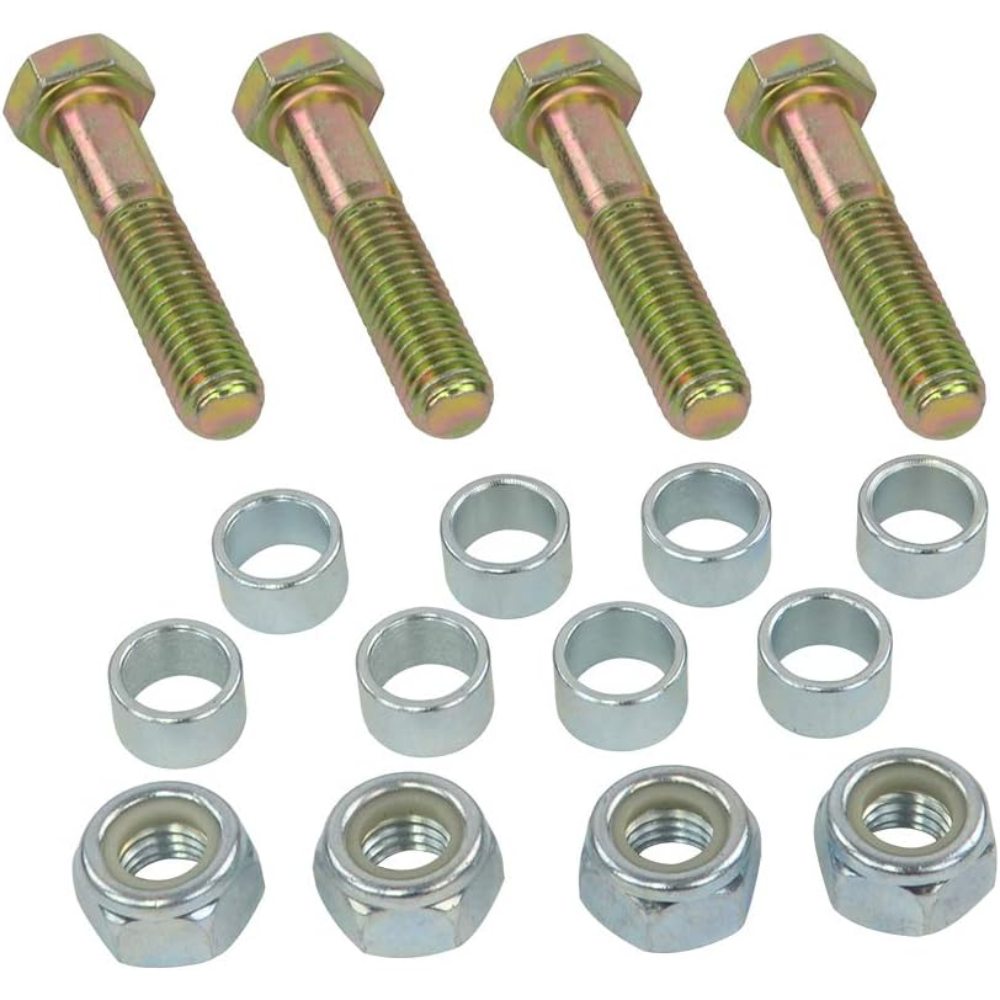

5. Tighten all lock nuts on the spherical joints and torque all mounting bolts to the specified settings for a secure installation.

Precaution:

Regularly inspect the spherical heim joints for play or debris and perform a professional wheel alignment after installation to ensure optimal handling and tire life.
