PQY 2PCS Door Lining Bushings – For Mazda Miata MX-5 (NA, NB, NC, ND) – Red

Description

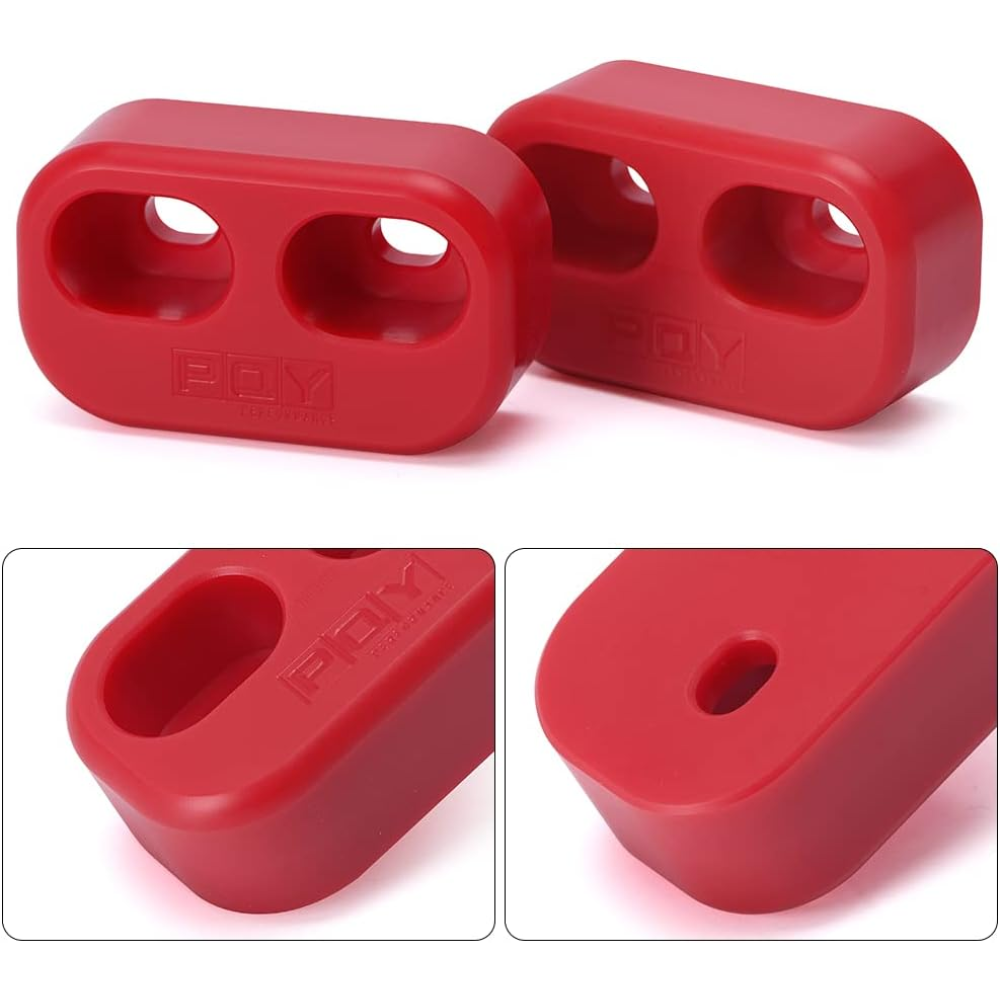

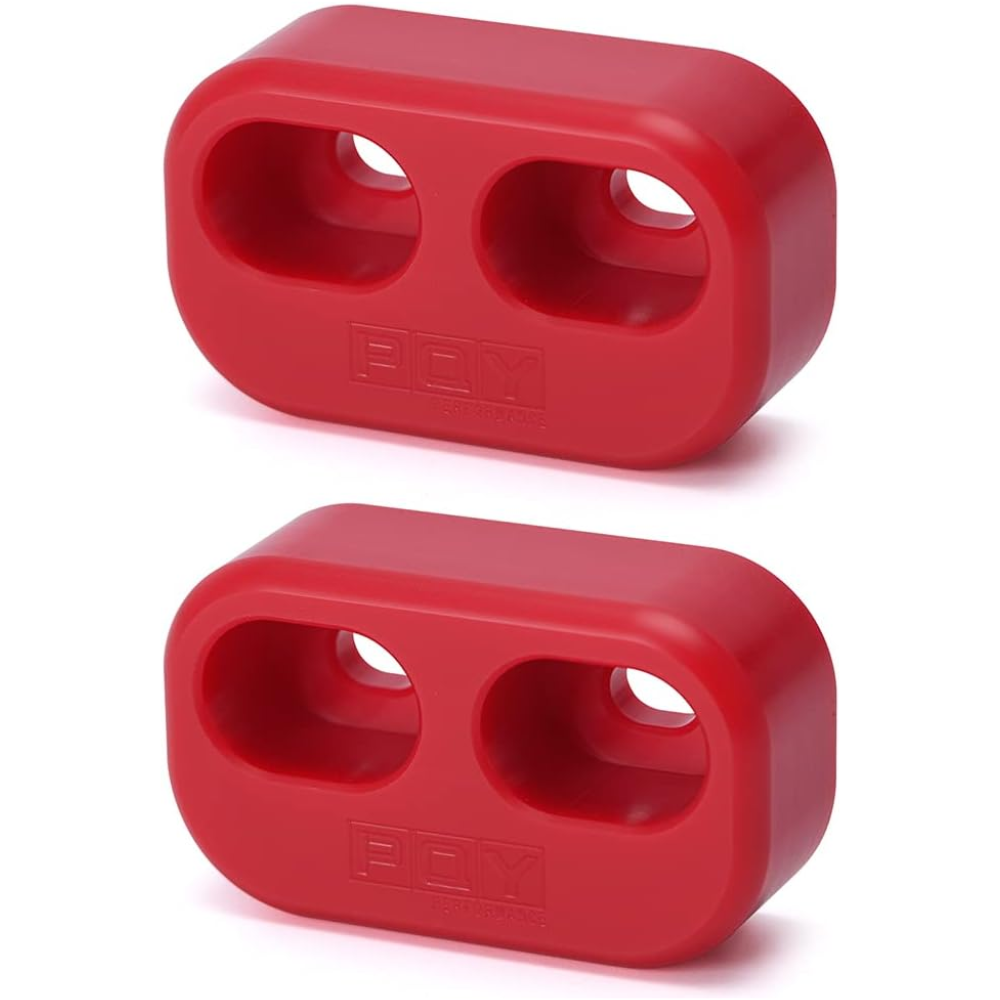

This pair of high-density polymer door bushings is a performance upgrade for all generations of the Mazda Miata (NA, NB, NC, and ND). Designed to replace soft factory rubber units, these red bushings create a tighter connection between the door and chassis, significantly reducing rattles and improving body rigidity. Each bushing features the PQY Performance logo and precision-molded mounting holes for a perfect fit.

Instructions:

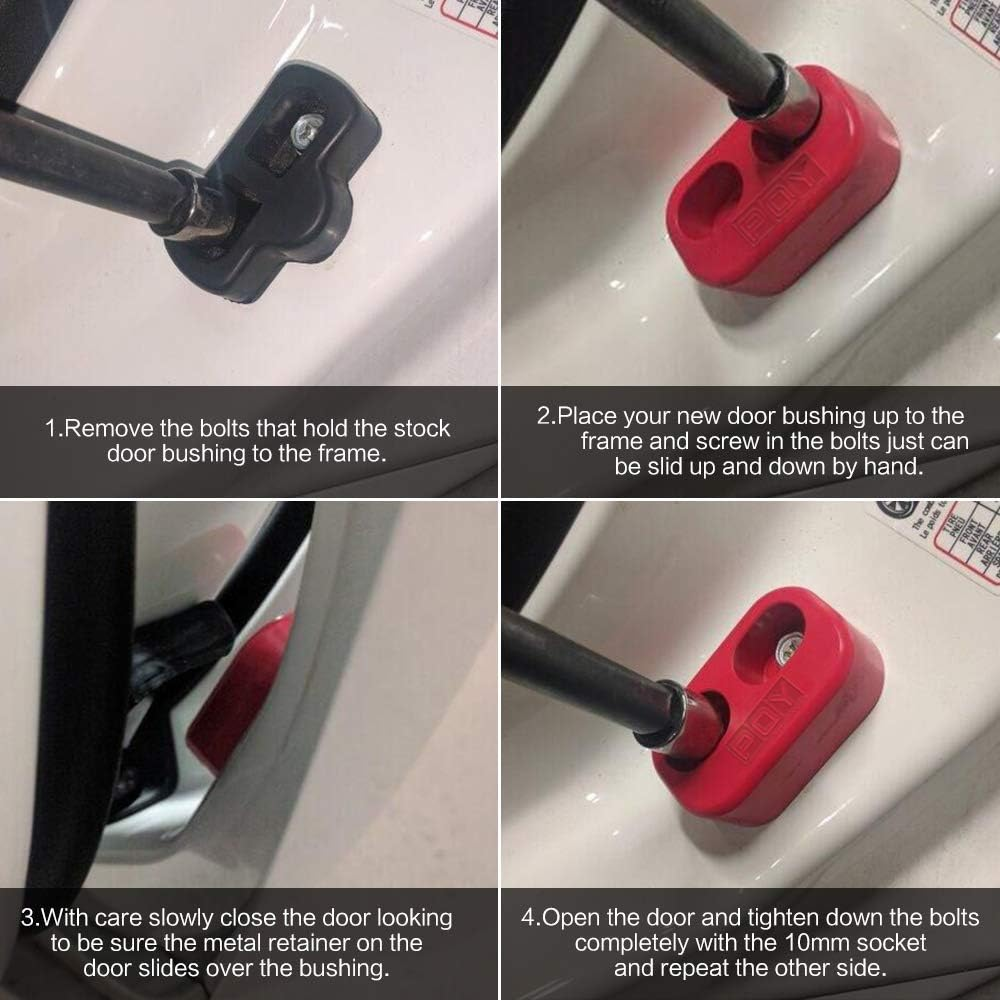

1. Open the door and locate the factory rubber bushing on the door jamb.
2. Remove the two mounting bolts and pull the old rubber bushing off the vehicle.
3. Position the new red PQY bushing in the same location, ensuring the indented bolt holes face outward.
4. Reinstall the factory bolts loosely to allow for minor adjustments.
5. Slowly close the door to ensure the door-side cup aligns perfectly with the bushing, then fully tighten the bolts.

Precaution:

If the door is difficult to close or latch, loosen the bolts and shift the bushing slightly until the door operates smoothly.
