7Cylinder Linkstyle Momentary Push Button Switch – Blue LED Indicator – 5-Pack

Description

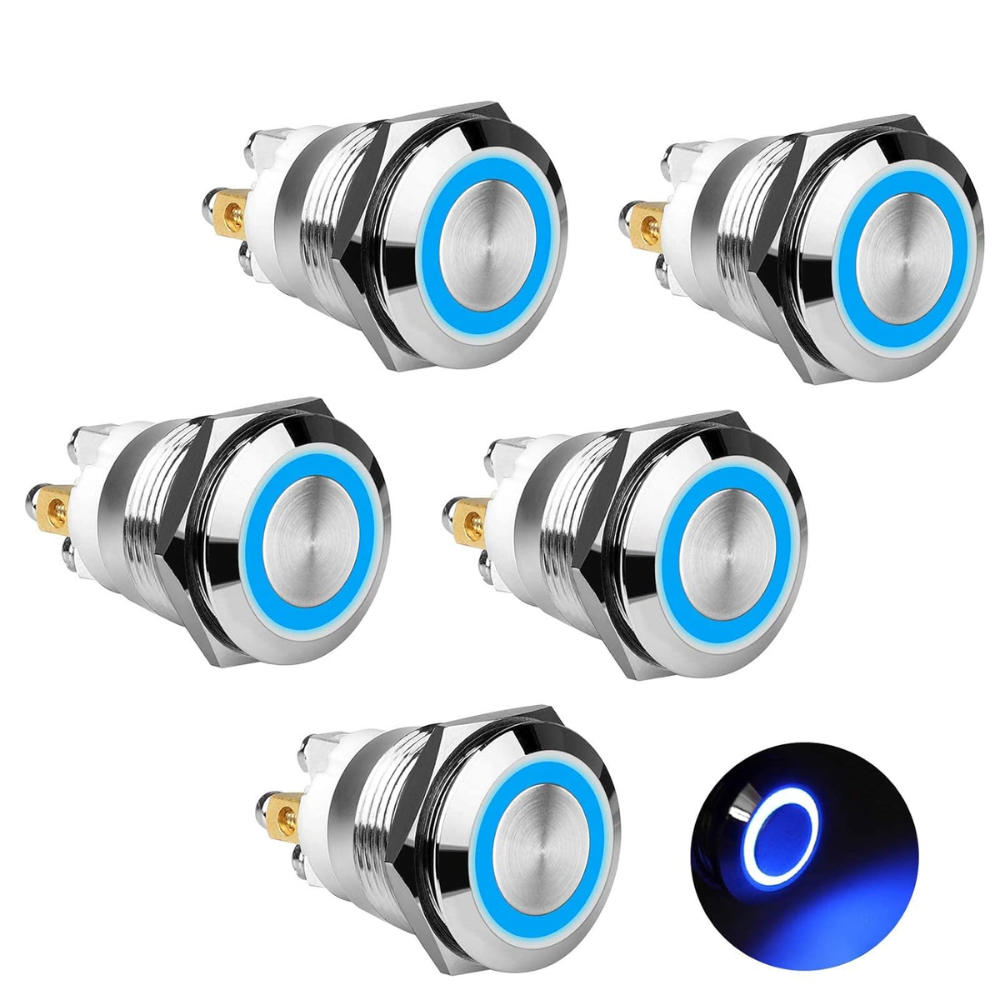

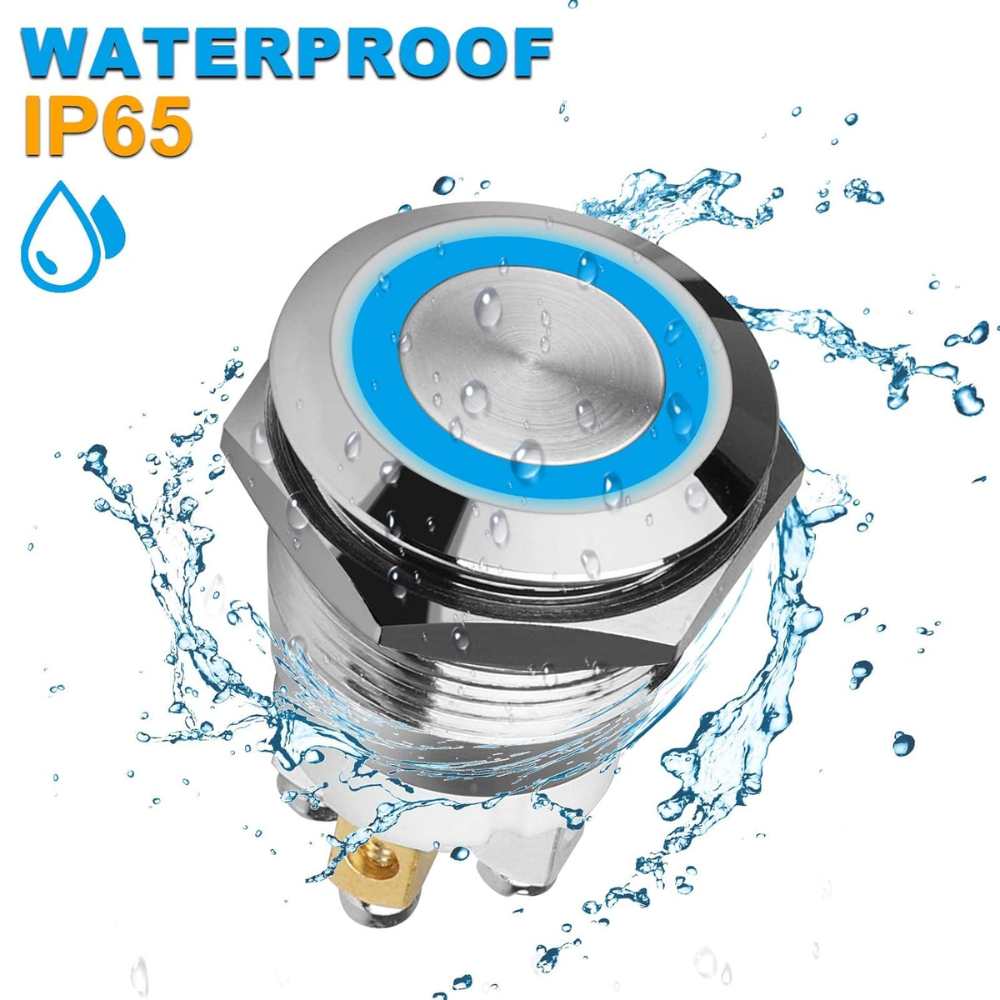

This 5-pack of 19mm momentary push button switches features a waterproof stainless steel design with an integrated blue LED ring indicator. Suitable for 12V–250V systems in automotive or marine applications, these SPST switches provide a sleek, durable interface for various electronic controls.

Instructions:

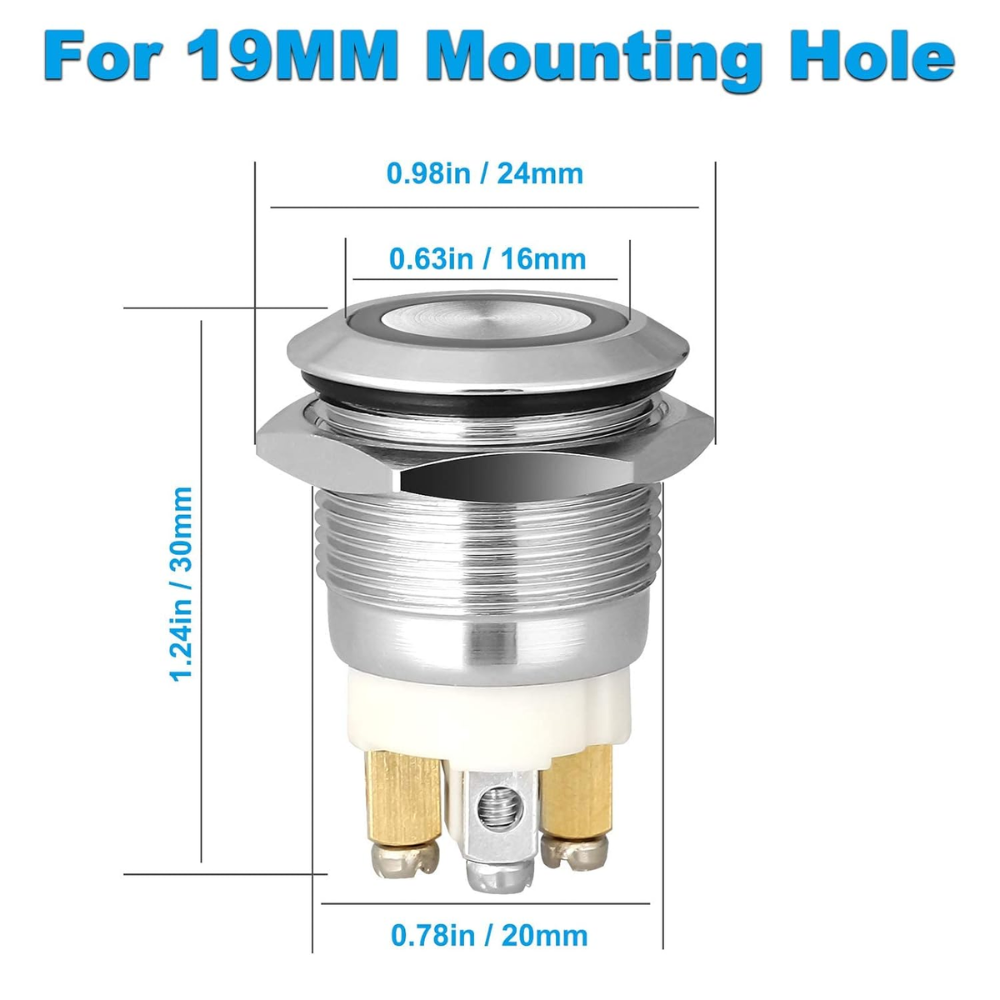

1. Drill a 19mm hole in your mounting panel and insert the switch body from the front.
2. Secure the switch by tightening the metal hex nut onto the threaded body from behind the panel.

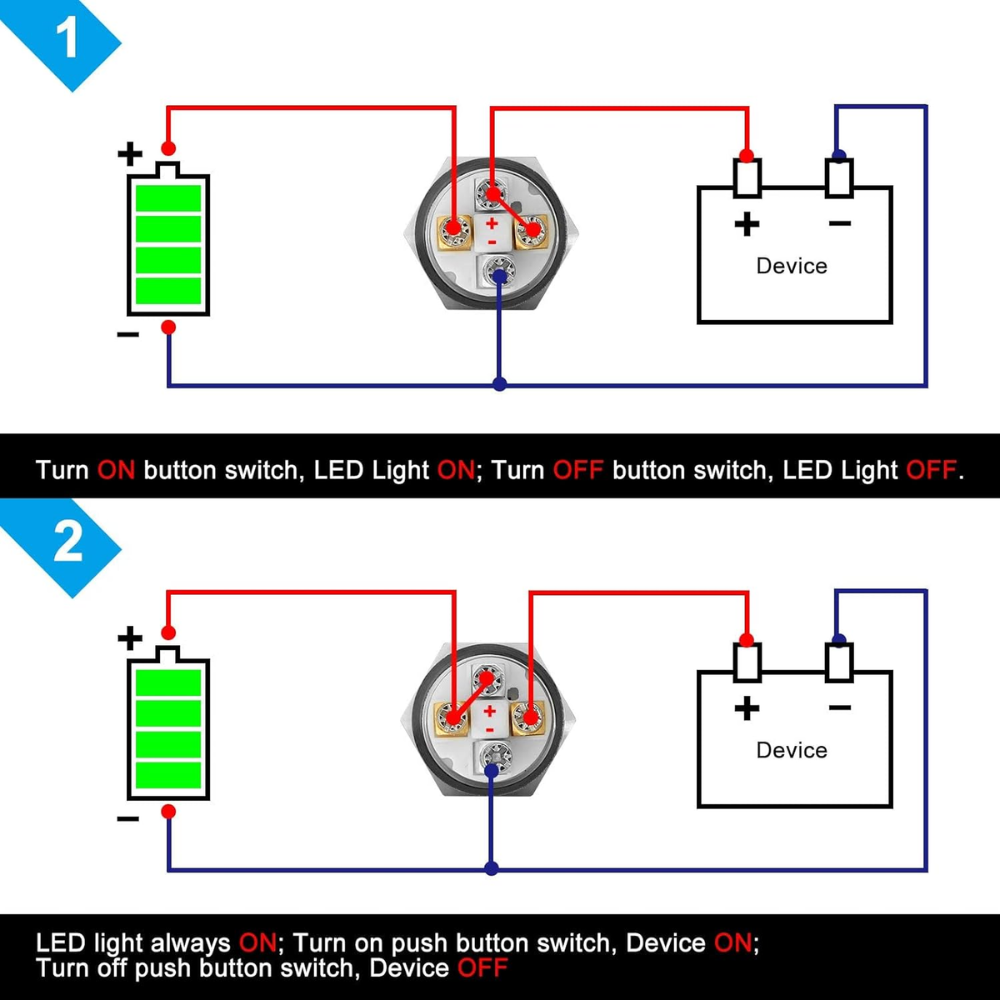

3. Connect the power source to the appropriate terminals to enable the blue LED ring light.

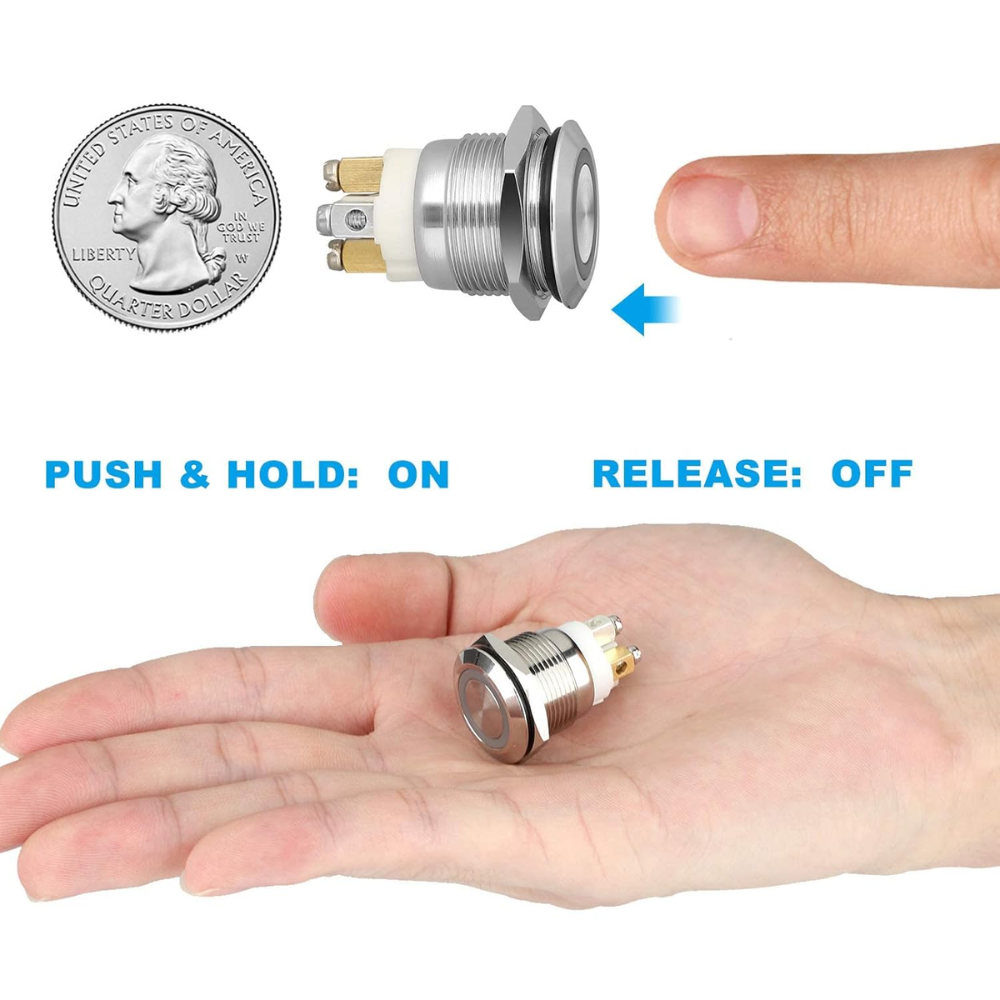

4. Wire the momentary contact terminals to your target device, ensuring the circuit only completes while the button is physically depressed.
5. Verify that the switch provides a smooth tactile click and the blue light illuminates when powered.

Precaution:

Ensure your wiring does not exceed the 5A rating to prevent overheating the switch internals.
